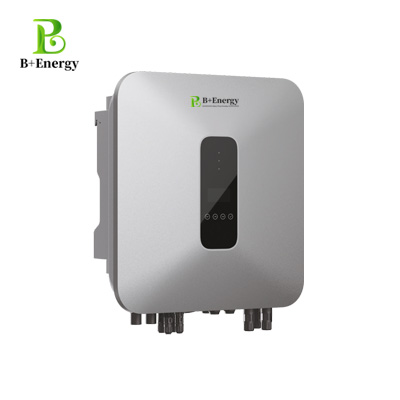

Solar Hybrid Inverter 3600W (AC Output Grid-Tied) On-Grid / Off-Grid Solar Inverter
Description
A Best Plus Energy hybrid solar inverter is a piece of equipment that is created by combining a solar inverter and a battery inverter into a single unit. This allows the hybrid solar inverter to intelligently handle power coming from your solar panels, solar batteries, and the utility grid all at the same time.
The direct current (DC) electricity generated by your photovoltaic (PV) system is changed into the alternating current (AC) electricity that is used to power your home. This type of solar grid-tie inverter also makes it possible to send any excess electricity generated to the utility grid.
The process of converting the DC electricity that is stored in your solar battery storage into AC electricity that can be used by your home is managed by a battery inverter.
A solar hybrid grid-tie inverter makes the work of a traditional solar inverter easier and better by putting all of its functions into a single device. These features include grid connection and solar panel charging. Even better, because the amount of solar power that is available can vary depending on the weather and the time of year, a hybrid inverter can, if necessary, draw power from the electricity grid to charge your battery storage system. This is a significant benefit because the amount of solar power that is available can change.
Inquiry Email: info@bestplusenergy.com
Solar Hybrid Inverter 3600W (AC Output Grid-Tied) On-Grid / Off-Grid Solar Inverter
Feature

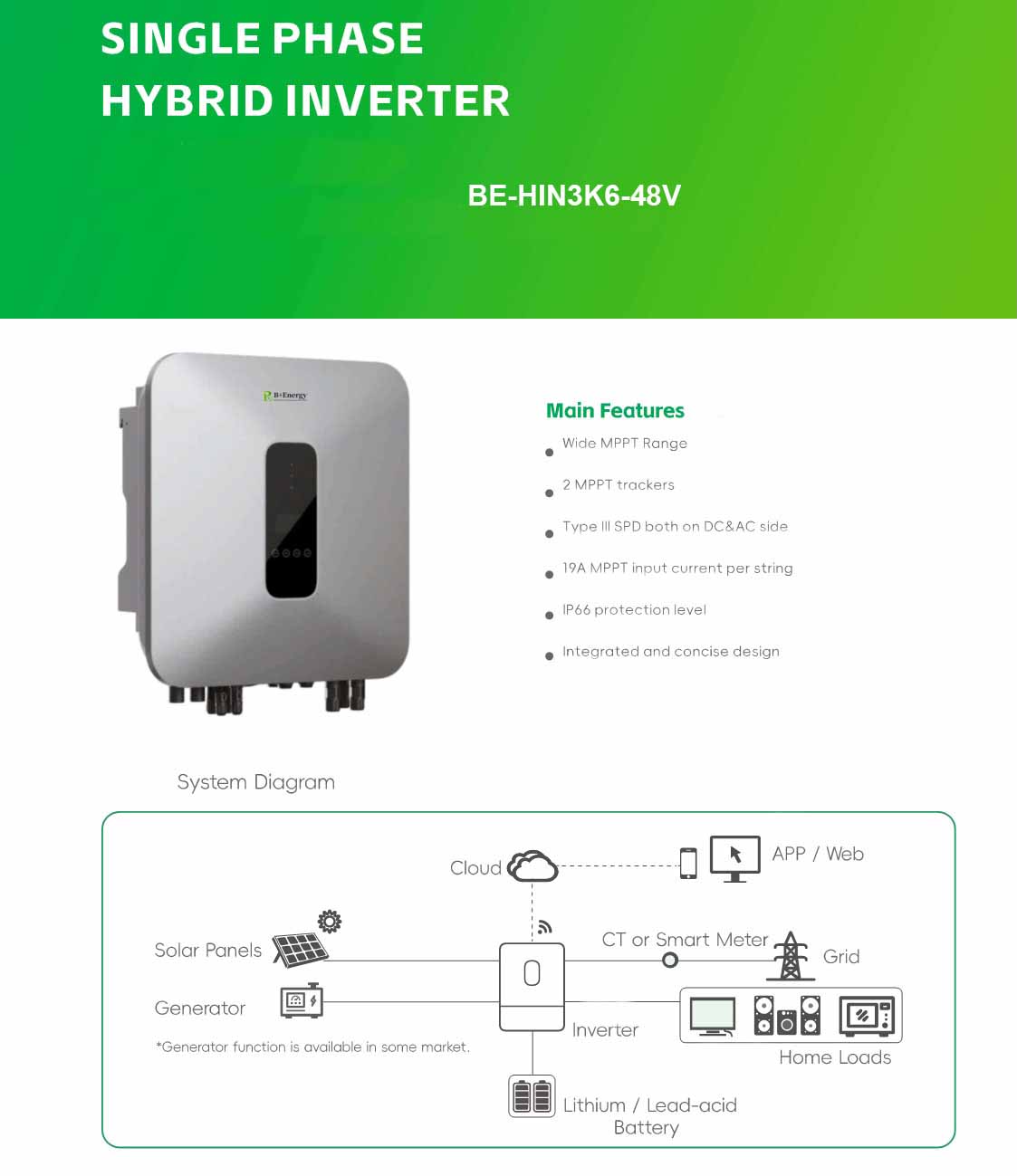

Single Phase Solar Hybrid Inverter 3600W
(AC Output Grid-Tied) On-Grid / Off-Grid Solar Inverter
Model: BE-HIN3K6-48V
Pure Sine Wave Solar Inverter
Output Voltage: 230V (176-280V); Single Phase
Output Power: 3600W
Battery Voltage: 48Vdc
Wide MPPT Range, Dual MPPT Trackers
IP66 Waterproof Protection Rating
Large PV input voltage range (80-550VDC), Dual PV input
Intelligent battery charging design optimizes battery life
Inquiry Email: info@bestplusenergy.com
Solar Hybrid Inverter 3600W (AC Output Grid-Tied) On-Grid / Off-Grid Solar Inverter

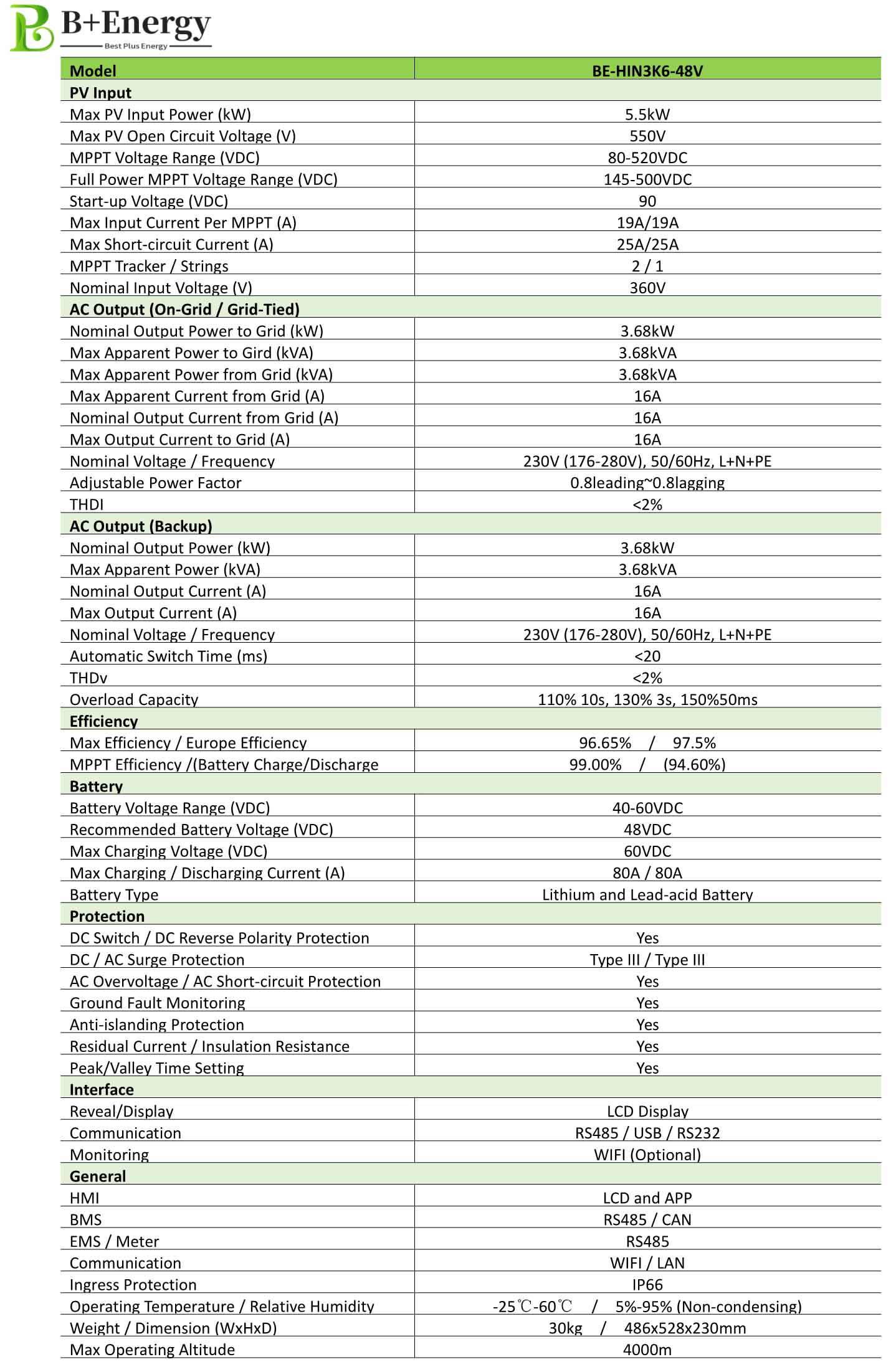

Parameter
Solar energy is becoming an increasingly widespread choice for homeowners and businesses looking to reduce their carbon footprint and save on energy costs. There are two main types of solar systems: on-grid and off-grid.
On-grid systems connect to the electric grid and supplement the power you receive from your utility company. In contrast, off-grid systems are entirely independent and rely on battery storage.
Despite their differences, they offer similar benefits. A solar system’s suitability for your household or business depends on your specific needs and circumstances. Learn what makes them different and whether on-grid, off-grid, or hybrid systems are better for you.
What Are the Differences Between On-Grid and Off-Grid Solar Systems?
When deciding which type of solar system is right for you, you must carefully consider your specific needs and circumstances. For example, if you live in an area with frequent power outages, an off-grid or hybrid solar system is an excellent choice to ensure a reliable source of electricity. On the other hand, if you want to partially reduce your carbon footprint and save some money on your electricity, an on-grid solar power system could be a solid choice. It may allow you to participate in net metering and can also be more secure in a location that has a reliable electricity infrastructure and doesn’t get much peak sunlight.
What About a Hybrid Solar System?
A Best Plus Energy hybrid solar system combines the benefits of on-grid and off-grid solar. Hybrid systems offer battery storage like off-grid systems but can also connect to the grid. Both battery storage and a grid connection allow you to use the grid as a backup power source when your batteries run low while potentially taking advantage of net metering.
Hybrid systems can provide a reliable source of electricity when the grid is down, or your solar panels are not producing enough energy. The batteries in a hybrid system can store excess solar energy during the day and provide power to your home at night or during periods of low solar production. In addition, the system can draw power from the grid when the batteries run low to ensure a continuous electricity supply.
Hybrid solar systems can be an option for those who want the benefits of both on-grid and off-grid systems. Live in an area with frequent power outages? A hybrid solar system can provide a reliable source of electricity while also allowing you to take advantage of net metering and save on your electric bills. They can also be a good choice for homeowners who want to be as self-sufficient as possible but still want the peace of mind that comes with a grid connection.
A Best Plus Energy inverter’s primary function is to change the direct current (DC) that is fed into it from your solar panels into alternating current (AC), which your house is able to make use of. This method is taken to a whole new level when a hybrid solar inverter is used, which brings with it a number of benefits, including the following:
DC-to-AC Power Conversion in Both Directions Solar batteries are often charged by direct current (DC) electricity that comes directly from solar panels or by DC electricity that has been converted from alternating current (AC) electricity using a solar inverter (AC coupled). The stored direct current electricity must then be converted by an inverter into alternating current electricity before the power may be released.
When it is a hybrid model, one piece of equipment can do the job of both the inverter and the battery. The hybrid grid-tie inverter can use AC electricity to power your home. It can also take AC electricity from the grid and turn it into DC electricity that can be stored in batteries for later use.
Regulation of the Power Supply Solar panels can produce different amounts of power depending on the time of day and the weather. This is because the amount of sunlight changes throughout the day. A hybrid inverter controls and regulates this electricity to make sure that the system as a whole works within the parameters that were set.
Power Monitoring Solar hybrid grid-tied inverters can be fitted with solar power monitoring software to measure and keep an eye on your photovoltaic system. This can be done through the display screen of the inverter or through an app on a connected smartphone. This can assist in locating any faults in the system.
Hybrid inverters with Maximum Power Point Trackers (MPPT) measure how much electricity your solar panels make and compare it to the battery’s voltage. This is done to get the most power out of the system. This makes it possible for the most power to be made and for DC electricity to be turned into the voltage that gives the battery the most charge. Your MPPT makes sure that your solar power system will work well no matter what, such as how bright the sun is, how hot the solar panels are, or how much electricity is being used.
